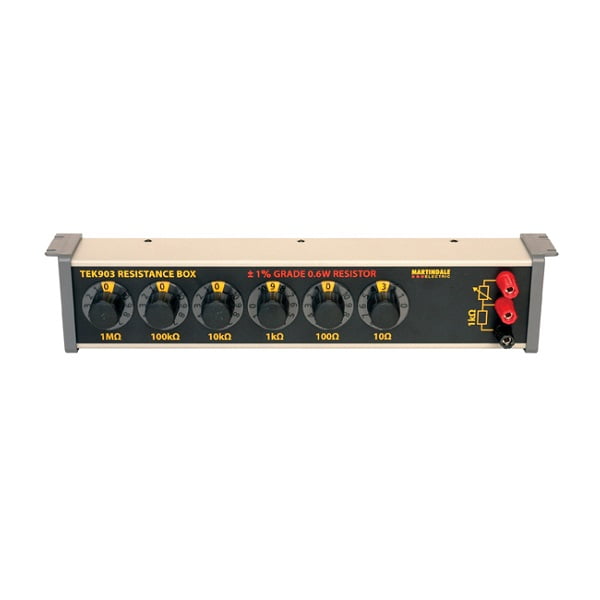

Martindale TEK903 Decade Resistance Box

The Martindale TEK903 decade resistance box, features 6 decades ranging from 10Ω to 11.1111MΩ, and high quality rotary switches. Extra terminals also form an accurate potential divider.

With a 1% accuracy, this is ideal for laboratory, education and calibration applications.

Resistance:

1% grade 0.6W per resistor variable from 10Ω to 11.1111MΩ in 6 decades

Typical residual (zero) resistance:

< 150mΩ

Temperature coefficient:

50 ppm/°C

Operating environment:

0°C to 50°C at < 70% RH

Dimensions:

345 x 71 x 51 mm

Weight:

536g approx

Click on the link below for further details;

TEK903
