Martindale Thermokit Thermometer Kit

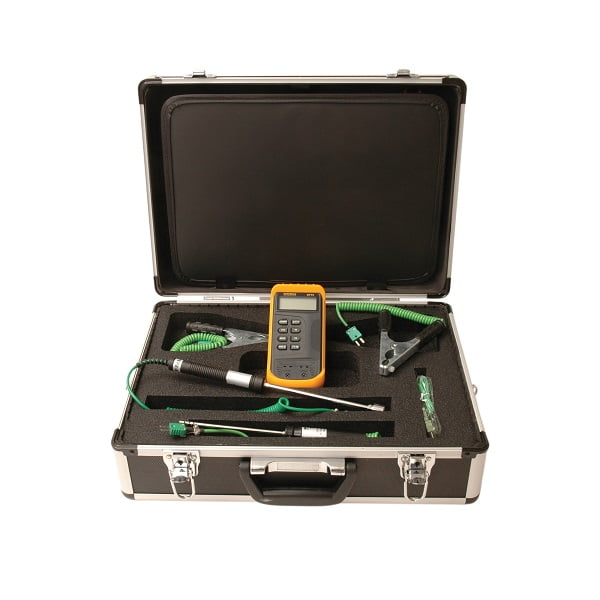

The Martindale Thermokit is a comprehensive temperature kit, ideal for electricians, plumbers, boiler engineers and maintenance engineers. Supplied in a durable aluminium carry case, the kit includes the Martindale DT75 dual input thermometer, bead type probes, pipe clamp probes, an air probe and a surface probe.

This is a high quality dual-input digital thermometer with temperature difference capability. It is able to measure input and output temperature and temperature differentials through boilers, radiators etc. and can accept a wide range of K type probe accessories.

The meter comes with a protective rubberised holster and is switchable between °C and °F and between 1° and 0.1° resolution. Hold and maximum buttons allow the current value to be frozen or the maximum reading to be stored.

The Thermokit comes complete with the DT75 thermometer, 2 x bead type probes, 2 x pipe clamp probes, 1 x air probe and 1 x surface probe.

Martindale DT75 Thermometer Specifications

Display

• 3 1/2 digit LCD with a maximum reading of 1999

Sampling Rate

• 3 times per second

Resolution

• Switchable between 1° / 0.1° and °C / °F

Electrical Measurement Range

• -50°C to 1300°C (-58°F to 2000°F)

Measurement Accuracy
For operating temperatures of 18°C to 28°C (64°F to 82°F), for one year, not including thermocouple error.

• -50°C to 0°C: +/- 2°C
• 0°C to 1000°C: +/- 0.3% reading + 1°C
• 1000 to 1300°C: +/- 0.5% reading + 1°C
• -58°F to 32°F: +/- 4°F
• 32°F to 2000°F: +/- 0.3% reading + 2°F

General Specifications

• Supply: 9V battery, MN1604 / PP3
• Dimensions: 147 x 70 x 39mm
• Weight: 215g approx

Supplied Probes Specifications

Martindale TT1P Bead Probe

• Temperature Range: -75°C to 250°C
• Dimensions: Ø1.5 x 1000mm

Martindale TT5K Air Prove

• Temperature Range: -50°C to 250°C
• Dimensions: Ø4.5 x 130mm

Martindale TT8K Surface Probe

• Temperature Range: -50°C to 600°C
• Dimensions: Ø6 x 130mm

Martindale TT10K Pipe Clamp Probe

• Temperature Range: -50°C to 100°C
• Dimensions: Ø12 x 130mm

Kit Supplied With

• DT75 thermometer, 2 x bead probes, 2 x pipe clamp probes, 1 x air probe, 1 x surface probe, heavy duty aluminium case
