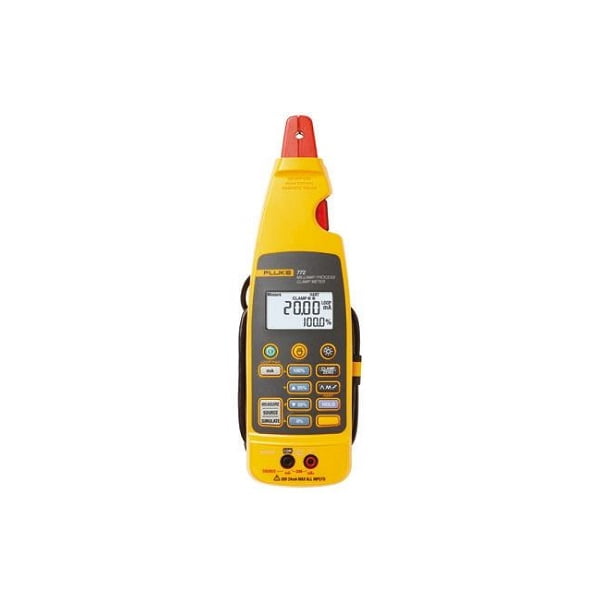

Fluke 772 mA Process Clamp Meter

• Best in class 0.2 % accuracy
• 0.01 mA resolution and sensitivity
• Measure 4 to 20 mA signals without ”breaking the loop”
• Measure mA signals for PLC and control system analog I/O
• Dual backlit display with both mA measurement and percent of 4 to 20 mA span
• Measurement Spotlight illuminates hard to see wires in dark enclosures
• Detachable clamp with extension cable for measurements in tight locations
• Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
• Automatically change the 4 to 20 mA output for remote testing
• Power saving features, auto-off, backlight timeout extend battery life
• Hold function captures and displays changing measurements
• Measure 4 to 20 mA signals with in-circuit measurement
• Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
• Source 4 to 20 mA signals for testing control system I/O or I/Ps
• mA output linear ramp or 25% step output
• Automatically change the 4 to 20 mA output for remote testing

What’s the difference between the 77X models?

.	Fluke-771	Fluke-772	Fluke-773
.	Non-contact mA loop measurement	Integrated mA loop troubleshooting	Advanced process troubleshooting
mA measure, jaw
mA measure, in circuit
Loop power
mA source
DCV measure
DCV source
mA scaled output
mA in / out

The Fluke 772  mA process clamp meter is supplied with the following;

• Four AA alkaline batteries (installed)
• Soft carrying case
• TL75 test leads
• AC 72 detachable clip
• TL 940 mini hook test leads
• Instruction sheet
• Hanging tool with hook and loop strap
