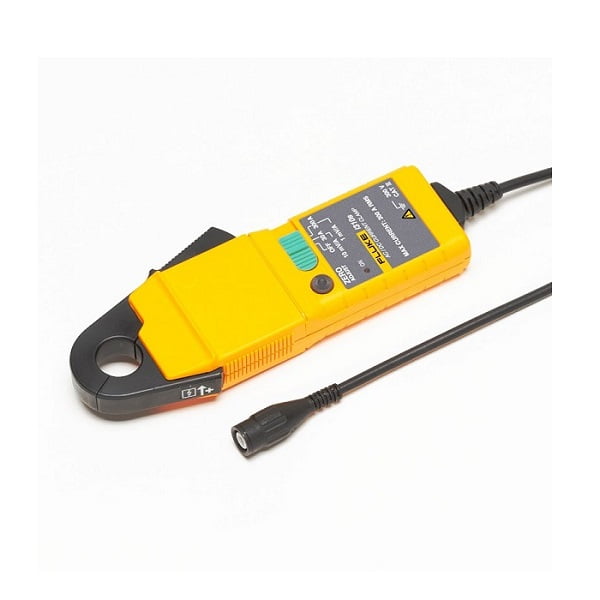

The i310s current probe is based on Hall Effect technology for use in measurement of both DC and AC current. The i310s may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement.
- Current Ranges: 30 A and 300 A ACRMS or ±45 A and 450 A DC
- Measuring Ranges: ±45 A and 450 A
- Output Sensitivity: 10 mV/A (40 A) to 1 mV/A (400 A)
- Resolution: ±50 mA (40 A) to ±100 mA (400 A)
- Load Impedance: > 10 k Ohms and £ 100 pF
- Frequency Range (small signal): DC to 20 kHz (- 3 dB)
- Phase Shift below 1 kHz, < 2 degrees
- Temperature Coefficient: ±0.1% of reading / ±C
- Power Supply: 9 V Alkaline
| Electrical Characteristics |
| Current Ranges | | 30 A and 300 A ACRMS or ±45 A and 450 A DC |
|
| ACRMS or DC | |
| Inrush Current | |
| Output Sensitivity | | 10 mV/A (30 A) | | 1 mV/A (300 A) |
|
| Accuracy (at +23°C) | | (30A range) | ±1% of reading ±50 mA | | (300A range) | ±1% of reading ±300 mA |
|
| Bandwidth to meet accuracy specification | |
| Phase Shift below 1 kHz | |
| Resolution | | ±50 mA (30 A) | | ±100 mA (300 A) |
|
| Load Impedance | |
| Conductor Position Sensitivity | | ±1.5% relative to centre reading |
|
| Frequency Range | | (small signal) | DC to 20 kHz (- 3 dB) |
|
| Temperature Coefficient | |
| Power Supply | |
| Battery Life | | 30 Hours, low battery indicator |
|
| Working Voltage (see Safety Standards section) | |
| General Characteristics |
| Maximum Conductor Size | |
| Output Connection | | Safety BNC connector | | Supplied with safety 4mm adaptor |
|
| Output Zero | | Manual adjust via thumbwheel |
|
| Cable Length | |
| Operating Temperature Range | |
| Storage Temperature Range (with battery removed) | |
| Operating Humidity | | 15% to 85% (non-condensing) |
|
| Weight | |
| Safety Standards |
| BS EN 61010-1 | |
| BS EN 61010-2-032 | |
| BS EN 61010-031 | |
| 300 VRMS, Category III, Pollution Degree 2 | |
| Note | | Use of the probe on un-insulated conductors is limited to 300 V ACRMS or DC and frequencies below 1 kHz. |
|
| EMC Standards | | BS EN 61236 | 1998 +A1, A2, & A3 |
|
Compatible with the following range of Fluke testers;
- Fluke 113, 114, 115, 116, 117
- Fluke 175, 177, 179
- Fluke 233
- Fluke 287, 289
- Fluke 27II, 28II
- Fluke 8845, 8846
- Fluke 8808A
- Fluke 77IV
- Fluke 83V, 87V
- Fluke 43B
- Fluke 430 Series II
- Fluke 123, 124, 125
- Fluke 190 Series
- Fluke 1577, 1587
- Fluke 753, 754
- Fluke 787
- Fluke 789
