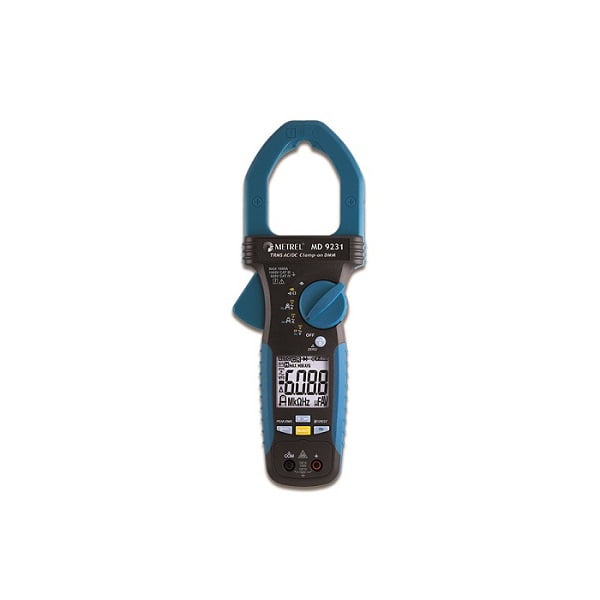

Metrel MD9231 1000A AC True RMS Clampmeter

The MD 9231 is an industrial TRMS AC and DC current clamp meter with a wide jaw opening and is capable of measuring currents up to 1000 A. It has the ability to measure capacitance and frequency and is equipped with a built-in VFD feature that makes the instrument capable of measuring the true values in accordance with frequency. The MD 9231 has a wide range of extra features, including peak value, data and MAX hold functions, auto power off, auto-ranging and a relative zero function. It uses state-of-the-art measurement technology and is housed in a sturdy industrial-grade case. It also has a flashlight for work in dark conditions.

• DC and TRMS AC voltage measurement up to 1000 V;
• DC and TRMS AC current measurement up to 1000 A;
• Resistance measurement;
• Acoustic continuity test;
• Diode test;
• Frequency measurement;
• Capacitance measurement.

• Auto-ranging.
• LCD display with backlight, 3-5/6 digit, 6000 count.
• Flashlight.
• Automatic, non-contact detection of electromagnetic fields to locate and trace live conductors.
• Data hold function.
• MIN/MAX/AVG function.
• Relative zero.
• 51 mm jaw opening.
• CAT IV / 600 V, CAT III / 1000 V overvoltage categories.

• System maintenance;
• Power system checking;
• High level industrial testing;
• High level electrical testing.
