PCE010 Refractometer

PCE010 Handheld Refractometer – Portable pocket Brix refractometer for use with low-concentration translucent liquids such as fruit and vegetable juices, maple sap and industrial coolants

PCE-010 is a handheld refractometer used to determine the % Brix (sucrose or sugar content) of low-concentration translucent liquids such as fruit and vegetable juices, maple sap and industrial coolants. This portable pocket Brix refractometer is specially designed to provide high-accuracy readings.

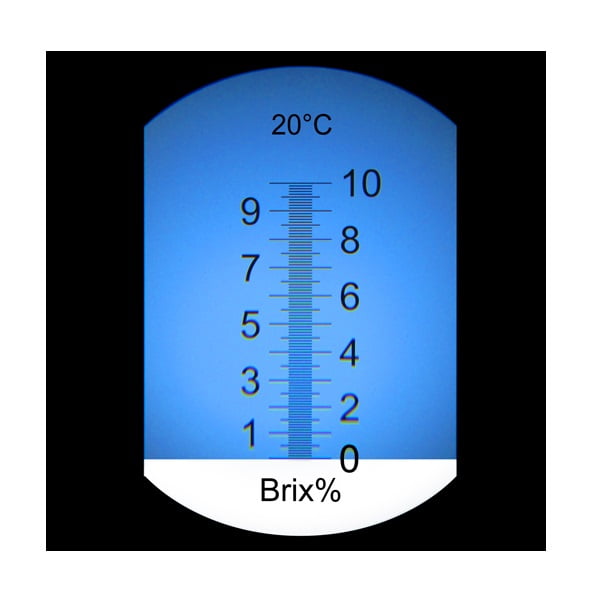

The ultra-smooth focusing eyepiece provides high-quality optics, presenting an easy-to-read scale on a semi-transparent blue and fully transparent clear background. Ambient room lighting offers ample illumination to clearly read the results.

– For use with low-concentration translucent liquids such as fruit and vegetable juices, maple sap and industrial coolants
– Ultra-smooth focusing eyepiece
– High-quality optics
– Easy-to-read scale
– Requires only ambient room lighting to clearly read results
– Handheld, portable and user friendly
– Equipped with automatic temperature compensation (ATC) for accurate measurement without recalibration after shifts in operating temperature

Measuring range
0 to 10% Brix (sucrose or sugar content)

Resolution
±0.1%

Accuracy
±0.1%

General specifications
Calibration: Zero calibration with distilled water at 20 °C / 68°F
Automatic temperature compensation (ATC) range: 10 … 30 °C / 50 … 86 °F
Dimensions: Approx. 172 x 20 mm diameter / 6.77 x 0.79″ diameter
Weight: Approx. 260 g / 0.58 lb
