Fluke Current clamps are the ideal tools to extend the current ranges of Fluke tools.

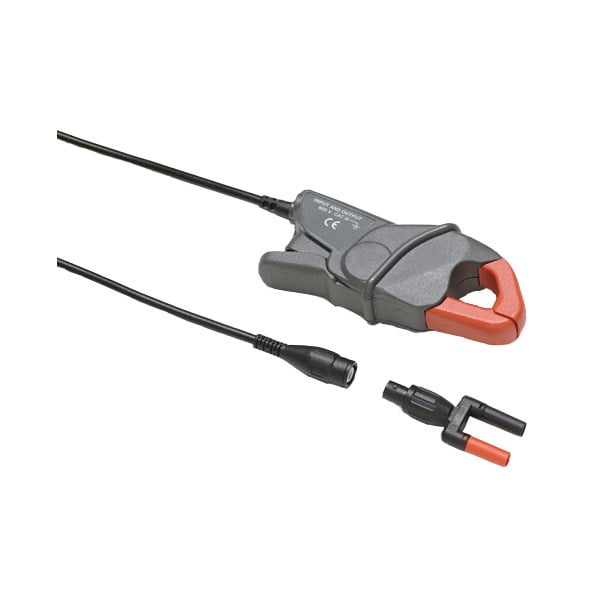

The i200s is a dual range 20A and 200A ac current clamp with voltage output via a safety insulated BNC connector. A dual banana to BNC adapter is supplied to allow the i200s to be connected to multimeters with banana inputs.
- Companion to your scopemeter, power quality meter or digital multimeter to measure up to 200 A AC
- Included adapter for DMM’s
- Two ranges: 20 A & 200A, 10 or 100 mV/ Amp output
- Take accurate current readings without breaking the circuit
- Max. conductor Ø 20 mm
- CAT III 600V safety rating
| Specifications |
| Nominal current range | |
| Continuous current range | | 0.1 A – 24 A | | 0.5 A – 200 A |
|
| Maximum Non-Destructive Current | |
| Lowest measurable current | |
| Basic Accuracy | | 1.5% +0.5 A | | (48-65 Hz) | | (% reading + floorspec) |
|
| Useable frequency | |
| Output level(s) | |
| Safety Specifications |
| Safety | |
| Maximum voltage | |
| Mechanical & General Specifications |
| Warranty | |
| Maximum conductor diameter | |
| Maximum conductor size (busbar) | |
| Output cable length | |
| BNC Adapter | |
| BNC to banana adapter included | |
Compatible with the following range of Fluke equipment;
- Fluke 113, 114, 115, 116, 117
- Fluke 175, 177, 179
- Fluke 233
- Fluke 287, 289
- Fluke 8845A, 8846
- Fluke 8808A
- Fluke 77IV
- Fluke 83V, 87V
- Fluke 88V
- Fluke 123, 124, 125
- Fluke 190
- Fluke 1577, 1587
- Fluke 753, 754
- Fluke 787, 789
