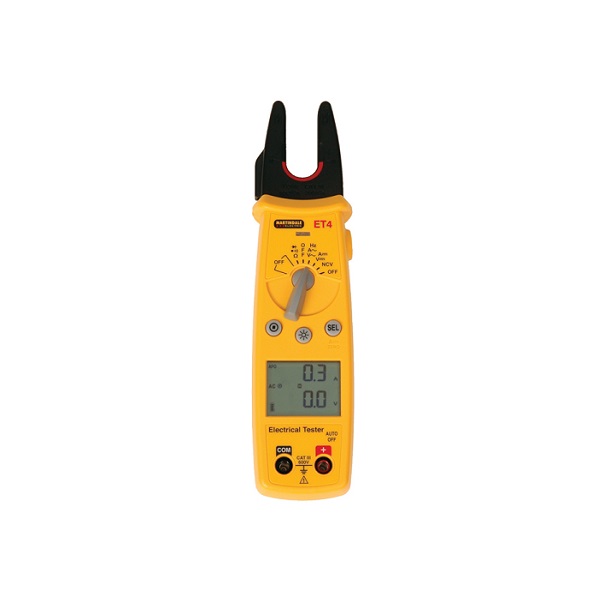

A compact electrical tester that measures voltage, resistance and current. It will also measure frequency, continuity and will take simultaneous measurement of current/voltage and frequency/voltage. This electrical tester can be used as a non-contact voltage indicator and has auto ranging, display hold and auto power off functions.
One of the forks has a forward facing LED light to illuminate the area in the front.
The ET4 is supplied with test leads, a soft carry case, 9V battery and manual.
- AC / DC Current: 0.1A to 200A
- AC / DC Voltage: 0.1mV to 600V
- Resistance: 0.1Ω to 50MΩ
- Frequency: 30Hz to 400Hz
- Continuity: 0.1Ω to 500Ω, buzz at <30Ω
- Diode Test: 1mV – 2V
- Non-Contact Voltage Indicator: 70V – 600V
- Power: 9V PP3 Alkaline (Included)
- Dimensions: 202 x 51 x 44mm
- Weight: 200g (incl. battery)
- Free ACT calibration certificate
Click on the link below to download the data sheet
